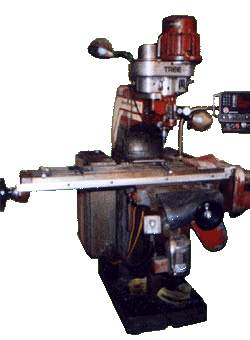

| 2-axis CNC (Spindle motor is getting rewound) (No controller) (No readouts) (Servo’s work); Manufacturer: Tree Machine Tool Co.; Model Number: 200R; Travel Type: Precision Ball Screws, .0005" position, .0003" Repeatability; Table Size: 10-1/2" x 48"; Travel : 12" x 30"; T-Slots: (3) 11/16" x 2-1/4" O.C.; Handwheel: .001" increments; Rapid Traverse: 100" /min; Milling Feed Range: .1 to 100 I.P.M.; Feed Motors: DC Servos (Closed Loop) 2 qty; Lubrications: Automatic, Head, Spindle & Quill; Z-travel: 4.000" (manual); Spindle Speeds: 60-3300 RPM; Spindle Drive: 2 HP; Quill Feed: .0015" to .008" /rev; W-travel (Knee): 17-1/2"; Price: $6,500.00 |
